WATER TREATMENT CARTRIDGE SYSTEMS

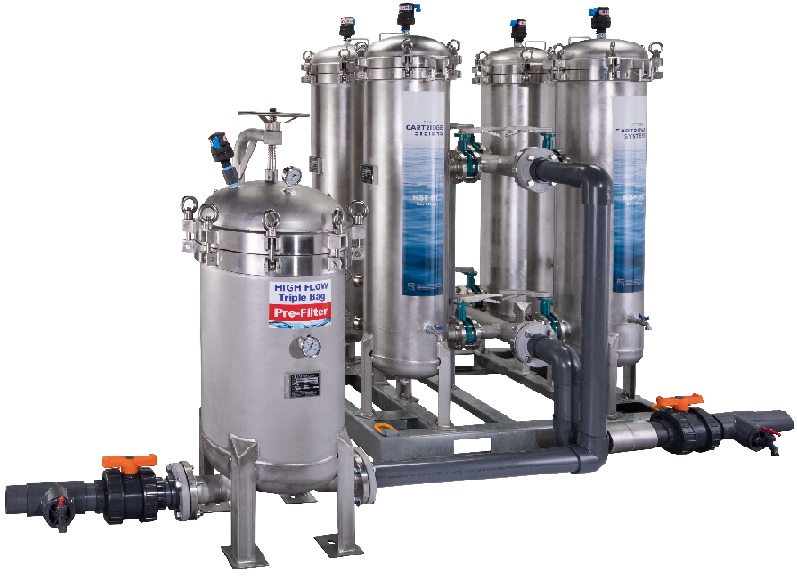

100 GPM Cartridge System with Triple-Bag Prefilter

Unmatched Quality & Convenience

Water treatment cartridge systems from Applied Cartridge Systems are installed in small water utilities, schools, hotels and resorts, RV parks, subdivisions and single & multi-user wells across north America. They deliver the unmatched convenience of cartridges together with the quality of NSF 61 certified stainless steel housings and prefilters.



* Stainless steel cartridge system &

   prefilter packages

* Fast, Drop-In-Ready installation

*Choice of treatment cartridges

* NSF/ANSI/CAN 61 Certified



* No backwashing

* No bulk media replacement

* No hazardous waste streams

* Small footprints

* Ideal for flow rates up to 500 GPM.





Now NSF 61 Certified Package With Housings, Prefilters & Cartridges

View NSF 61 Listing Certificate



Choice of easy-to-load cartridges

Downloads:

ISO-100-SK 100 GPM Skid System

ISO-100-SK 100 GPM Skid System

Check Out The New Video!

Applied Cartridge Systems Product Specifications

7 Standard Sizes: Stainless Steel Construction

 5 GPM 10 GPM 15 GPM 20 GPM25 GPM 50 GPM 100 GPM
Model:



ISO-5-SSISO-10-SSISO-15-SSISO-20-SSISO-25-SSISO-50-SKISO-100-SK
Max. Flow Rate:

5 gpm



10 gpm15 gpm20 gpm25 gpm50 gpm100 gpm
# of Vessels:1



11112 (on skid)4 (on skid)
# of Cartridges:123451020
Required Maintenance:NO BACKWASHING!
Pre-filter: (included)10” 1-micron cartridge20” 1-micron

cartridge

20” 1-micron cartridge20” 1-micron cartridge1-micron bag type,

SS housing

1-micron bag type, SS housing1-micron bag type, SS housing
Vessel Size:6.5” OD x 53” H



10” OD x 58” H10” OD x 58” H12” OD x

58” H

14” OD x

67-3/8” H

NANA
Vessel Construction:100 psi,

304 SS

100 psi,

304 SS

100 psi,

304 SS

100 psi,

304 SS

150 psi,

304 SS

150 psi,

304 SS

150 psi,

304 SS

Cartridge Size:4.5” OD x 42” L4.5” OD x 42” L4.5” OD x 42” L



4.5” OD x 42” L



4.5” OD x 42” L4.5” OD x 42” L4.5” OD x 42” L



Shipping Weight:27 lbs.71 lbs.71 lbs.105 lbs.330 lbs.675 lbs.1,200 lbs.
Inlet/Outlet Connection:1.5” FPT1.5” FPT1.5” FPT2” FNPT2” ASME Flange2” ASME Flange3” ASME Flange
Footprint:10” L x 10” D

x 53” H

15” L x 15” D

x 59” H

15” L x 15” D

x 59” H

18” L x 18” D

x 59” H

22” L x 22” D

x 67” H

64” L x 18” D

x 75” H

58” L x 39” D

x 75” H

Minimum Headroom*:

(for cartridge removal)

82”84”84”84”108”120”120”



* Custom low-profile models available when required.

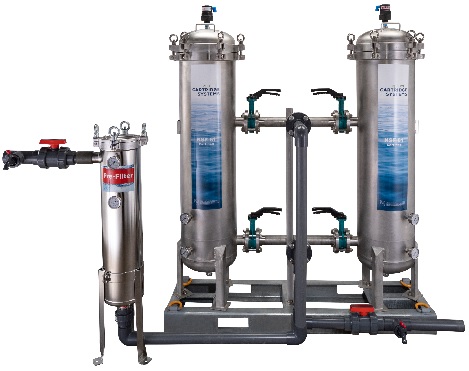

ACS 50 GPM System with Prefilter

50 GPM Skid Cartridge System with Single-Bag Prefilter

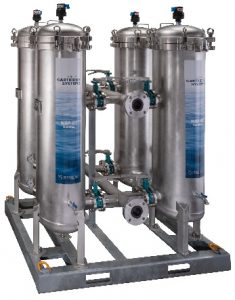

Multi-Vessel Cartridge Skid Systems

The pre-engineered, NSF 61 certified 50 and 100 gpm Cartridge System skids are competitively priced, self-contained water treatment solutions for small to medium size water systems. Each standard system consists of a stainless steel multivessel skid and stainless steel prefilter. Depending on application requirements they can be built in 1, 2 or 3 skid configurations for treatment by-pass and blending.

With simple inlet-outlet connections, pre-plumbed piping subassemblies and no required sewer hook-ups, installation is generally basic. In most cases a Cartridge System skid can be fully assembled and ready to hook up to a water supply in less than a day.

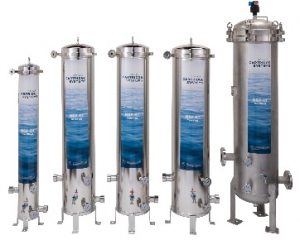

5,10, 15, 20 & 25 GPM Models

5,10, 15, 20 & 25 GPM Models

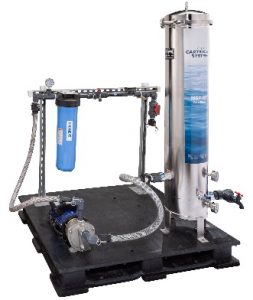

10 GPM Model with 20” prefilter

Freestanding Cartridge Systems

The freestanding Cartridge Systems from Applied Cartridge Systems, also NSF 61 certified, come in five stainless steel models from 5 up to 25 GPM complete with stainless steel or polypropylene prefilters.

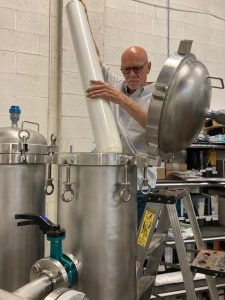

Since there’s no back washing or media replacement with Cartridge Systems, maintenance is minimal except for periodic one-man cartridge replacement. Installation is fast and easy too with quick inlet/outlet flange connections and simple single-bag pre-filters.
